Hendo 2.0 Hoverboard

In July of 2015 I started work as the only electrical engineer at Arx Pax, a startup company that makes real hoverboards using magnetic levitation(!!!). It was as much fun and work as you think it would be.

There was a ton of different projects that I worked on there, but the coolest one has to be the Hendo 2.0 hoverboard. For obvious reasons (read: NDA) I can't really talk about this project with the depth that I normally do. Suffice it to say that designing a hoverboard comes with the same challenges that electric vehicle design does.


Our big release event happened on October 21st, 2015-- the same date that Marty McFly travels to and rides a hoverboard in Back to the Future II. I naturally had to wear a Marty McFly costume complete with light up shoes and jacket signed by Back to the Future writer Bob Gale.




I've since moved on to start working at Farasis Energy to work with my good friend Jackson aka Farfle to work on lithium batteries for electric vehicles and other cool stuff. I had a blast working on this project and with the awesome engineering team at Arx Pax, and think that "Hoverboard designer" may have a permanent place on my resume ;)

Since the event there have been some cool videos that have come out that you can check out:
Wired Video and Article about the Hendo 2.0
CNET's Hendo 2.0 Video

Beerpong Robot

Final Results
At the end of our 10 week robotics class we had a robot that could play beerpong! We placed third at the competition, losing to Team 12: "The Hammer" (1st place) in the quarter-finals and then to Team 7: "ZZZZ Best" (2nd) in the sixth or seventh lightning round of the semi-finals.
The robot performed fairly well minus a few software issues mainly related to IR sensor threshold values used for detecting the ping pong ball's position when reloading not suitable for the outdoor sun and lightning round code that was written hastily and not designed to run for multiple rounds without restarting the robot.


The final loading mechanism used a motorized sleeve that acted as a "sealed" door to keep the airflow through the tube more consistent.


You can watch the video below to see how it performs. We also added a defensive ball swatting unit with an Arduino Uno a couple of days before the competition. It used a speaker taped to the bottom of the playing table as a microphone input and would swing the flyswatter back and forth a few times whenever it detected a ball hitting the table. It was surprisingly effective, and the signal response for a ball hitting the table was much higher than any ambient noise that we didn't have any false triggers furing gameplay.


Wiring Diagram
We chose to use Fritzing to do the wiring diagram for the robot to keep things straight when working on everything (it got to be a bit of a ratsnest sometimes)

Robot GUI

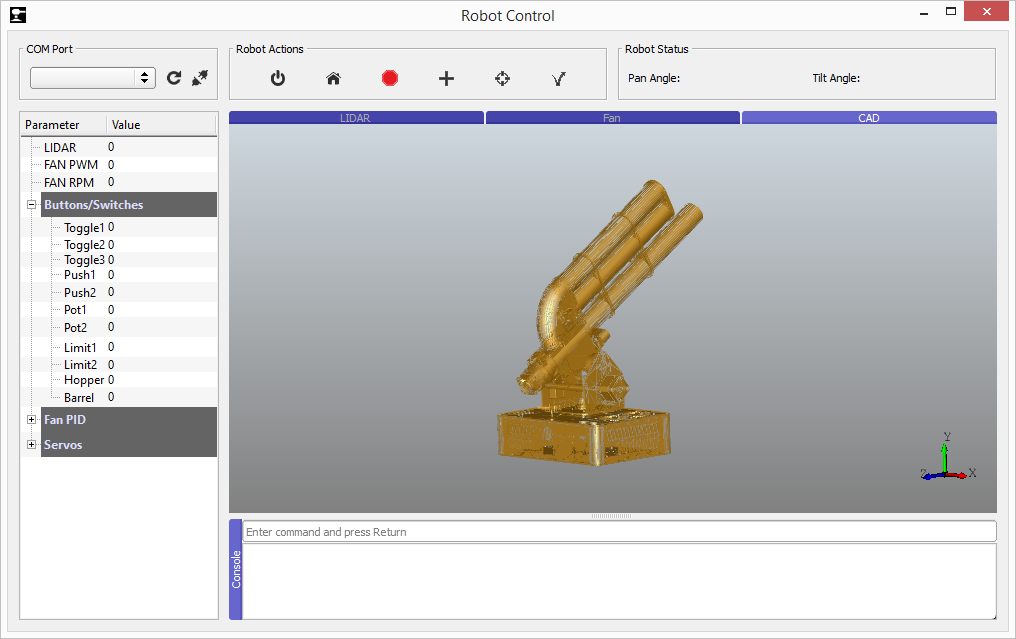

The GUI was written in Python and allowed for control of the robot and for displaying data from the various sensors such as the LIDAR and the tachometer for the fan.
There was work for a feature that would display a 3D model of the robot using pythonocc that would adjust the pan and tilt angle to match the robot to make remote control easier.
While we were able to open and view a STEP file of the robot, we took the feature out of the program before it was finished due to a lack of time.
